Solar Hybrid System

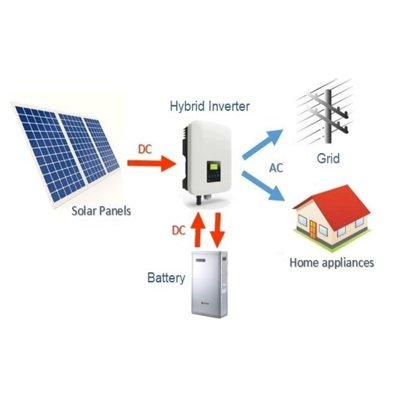

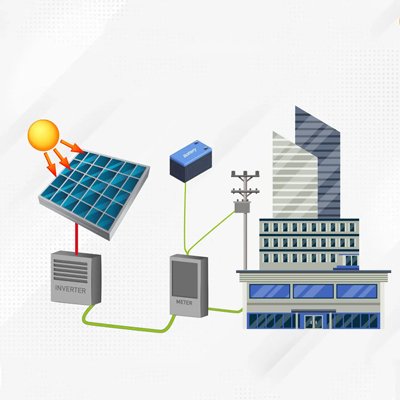

The Hybrid system seamlessly integrates solar, battery, and grid power to provide flexible and reliable energy management.

Previous Next

1 2

On-Grid Mode

Once the battery backup is full during the day, solar energy powers the connected loads and any surplus is fed back to the grid, reducing electricity bills.

Off-Grid Mode

In the event of a power outage during the day, the system automatically switches to battery backup, ensuring an uninterrupted supply to essential loads and simultaneously charges from solar.

In the event of a power outage during the night, the system automatically switches to battery backup, ensuring an uninterrupted supply to essential loads like normal UPS.

Hybrid Mode (Combined)

The system smartly balances solar, battery, and grid input— charging batteries when excess solar is available or at morning session when solar first arrives and drawing from the grid only when necessary, ensuring maximum savings and energy independence.

This intelligent operation makes the Hybrid system ideal for homes and businesses looking for energy independence, savings, and backup power—all in one system.

Deye Inverters

Deye three-phase on-grid inverter power range is from 4kW to 110kW with 230/400Vac. So, it can connect to utility grid(230/400V) directly without transformer. All the inverters are equipped with LCD display and buttons, easy operation and maintenance specially for remote and poor areas.

For the SUN-110K-G03, it has 6 MPP trackers and 24 pairs of strings. The Max. DC input power is up to 150kW. So, it can save equipment investment via connecting more PV modules. Solution and service by leading 3 phase string inverter manufacturer.

Hybrid Inverter

An on-grid inverter’s main job is to convert DC power generated from the PV array into usable AC power. Hybrid inverters go a step further and work with batteries to store excess power as well. In the developing world, hybrid inverters are more of a necessity to compensate for weak or intermittent grids or a lack of grid electricity all together.

Deye hybrid inverters include single phase 3- 16kW and three-phase 8-12kW, For the SUN- 3K-SG04LP1-24-EU, it uses 24V battery bank and the rest of them adopts 48V battery. Also, the SUN-16K-SG01 LP1-EU is the max single phase hybrid inverter on the global market.

FlinDuplo 6kW-48V Solar Inverter System

FlinDuplo is a new generation, future ready inverter with dual inputs for connecting loads. Now connect emergency loads on one output and non-emergency loads on second output and control how you want to use battery backup for non-emergency loads. The second output can be intelligently controlled by inverter brain using multiple parameters.

FlinDuplo 6kW Solar Hybrid Inverter System comes with

1 x FlinDuplo 6kW Solar Hybrid Inverter

1 x Flin AC Prewired Box

1 x Flin DC Prewired Box

50sqmm Soldered Battery Cable Set for 4 batteries
